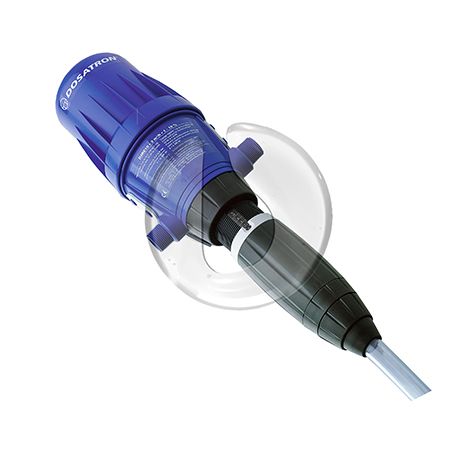

DOSATRON VVFH

We recommend two different versions for use with metalworking fluids depending on your desired concentraion-

The D3 RE 5V offers between 0 and 5% dose rate issuing 10 to 3,000 litres per hour and comes with ?? Kit??for viscous liquid additives such as metalworking fluids.

Similar the D3 RE 10V offers between 1 and 10% dose rate also issuing 10 to 3,000 litres per hour and comes with ?? Kit??for viscous liquid additives such as metalworking fluids.

Operating principle

Installed directly in the water supply line, the Dosatron operates by using the flow of water as the power source. The water activates the Dosatron, which takes up the required percentage of concentrate directly from the container and injects it into the water. Inside the Dosatron, the concentrate is mixed with the water, and the water pressure forces the solution downstream. The dose of concentrate will be directly proportional to the volume of water entering the Dosatron, regardless of variations in flow or pressure, which may occur in the main line.
